GRC Panel

GRC PANEL is a thin, lightweight concrete screen manufactured in molds and fixed to a building’s structure. GRC panels are generally non-load-bearing and are used as cladding or decorative elements, not structural walls.

Types of GRC Panels

Plain flat panels
Textured or patterned panels

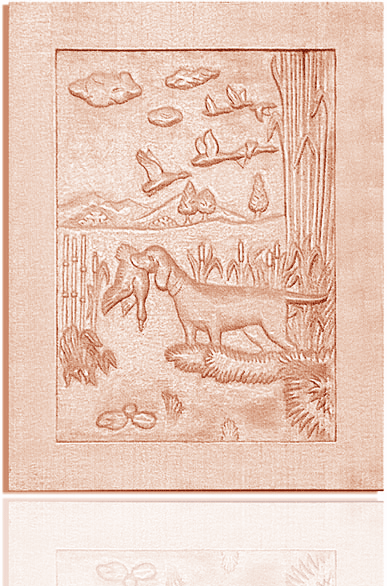

3D / sculpted panels
Perforated (Jaali) panels
Stone, wood, or brick-finish panels

We Shalini GRC Co. deal in GRC Panels with standard thickness of 25–30 mm, complying with all safety standards and delivering top-notch quality.

GRC Technical Specifications

Properties	Units	Pre Mix
Compressive Strength (IS 516)	MPa	35 - 45
Tensile Strength (IS 516)	MPa	4 - 7
Density (ASTM C-948)	gms/cm³	1.8 - 2.0
Impact Strength	kg/m²	7 - 15
Fibre Content	% by weight	3.5 - 4.5
Thickness	mm	25 – 50 (as per architect’s specifications)
Weight	kg/sqft	3 – 5 (depending on design)
Finish	—	Acid wash stone finish / smooth painted
