GRC Capital

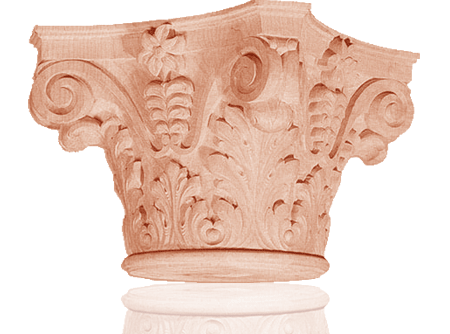

GRC capital is the head or crown of a column, designed to smoothly transition from the column shaft to the beam, slab, or arch while enhancing the overall visual appeal of the structure.

Functions of GRC Capital

Transition from the column shaft to the beam, slab, or arch
Enhance the visual appeal of the column

Types of GRC Capitals

Doric – simple and plain
Ionic – scroll (volute) design
Corinthian – leaf and floral detailing
Custom or modern designs

We Shalini GRC Co. deal in GRC Capitals with standard thickness, complying with all safety standards and delivering top-notch quality.

GRC Technical Specifications

Properties	Units	Pre Mix
Compressive Strength (IS 516)	MPa	35 - 45
Tensile Strength (IS 516)	MPa	4 - 7
Density (ASTM C-948)	gms/cm³	1.8 - 2.0
Impact Strength	kg/m²	7 - 15
Fibre Content	% by weight	3.5 - 4.5
Thickness	mm	25 – 50 (as per architect’s specifications)
Weight	kg/sqft	3 – 5 (depending on design)
Finish	—	Acid wash stone finish / smooth painted
